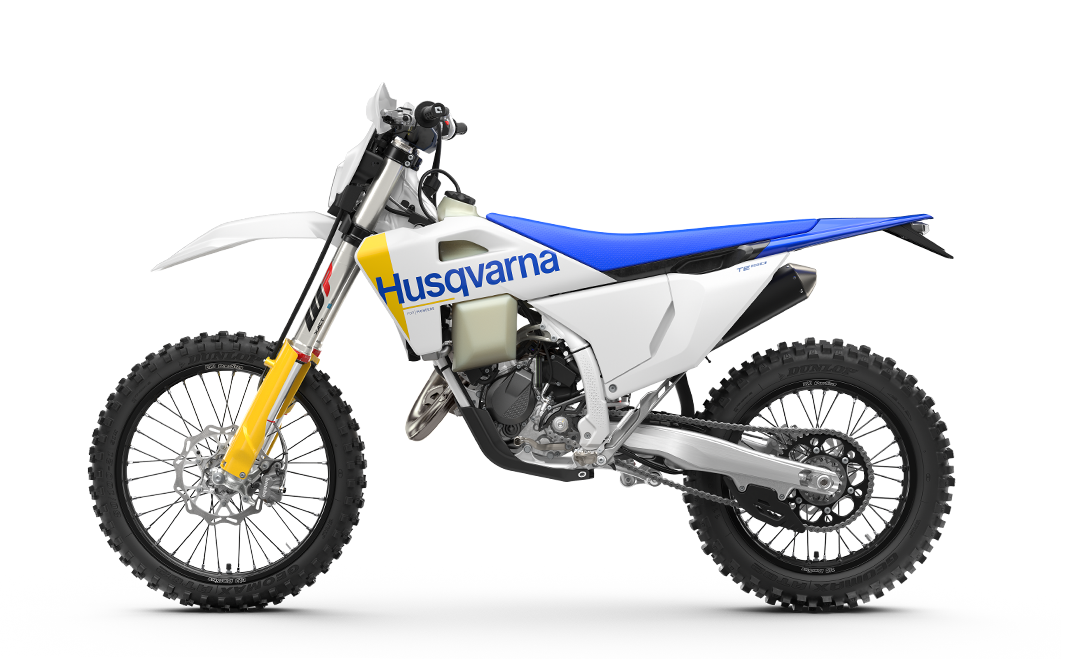

TE 150

01. Unrivalled power

Engine

An incredibly versatile engine ensures the TE 150 comfortably maintains its position as the leading small capacity enduro machine on the market. To make the TE 150 easy to ride, almost every component has been designed to create maximum torque while the Keihin throttle body ensures the delivery of strong power throughout the rev range. Assembled with the latest technical innovations throughout, the TE 150 engine delivers the ultimate in 2-stroke engine performance.

Cylinder

The cylinder features a 58 mm bore and is fueled by Throttle Body Injection (TBI). An innovative electronic exhaust control system manages the simultaneous opening of the lateral ports and main exhaust port for delivering maximum power throughout the rev-range. Together with a machined finish on the upper contour of the exhaust port, engine performance is exceptional.

Throttle body

The TE 150 uses a 39 mm throttle body with dual injectors positioned to optimize flow for a more immediate throttle response and exceptional rideability. Idle is controlled by the throttle valve, with one low load injector and one top feed injector ensuring maximum performance. Additionally, a Throttle Position Sensor (TPS) offers reliable cold starting with the throttle valve pivoting on ball bearings for a smoother throttle action.

Oil tank

An electronic oil pump feeds vital 2-stroke oil into the engine. It is located just below the oil tank and feeds the oil via the throttle body, meaning the oil is only mixed with air at this stage. The pump is controlled by the EMS and delivers the optimal amount of oil according to the current RPM and engine load. The oil tank is connected to a filler hose that runs through the upper tube of the frame to a filler cap conveniently located for easy refills.

Crankcase

Designed to be low in weight without sacrificing strength or reliability, the crankcases are made using a high-pressure die cast production process to create a thin-wall design. To centralize engine mass, the shaft arrangements are precisely positioned to harness rotating masses at the ideal center of gravity.

Exhaust

Tailored specifically for the TE 150 using an innovative 3D design process, the header pipe ensures unrestricted performance and is designed for maximum ground clearance to reduce the risk of impact damage out on the trail. The silencer also features an aluminum mounting bracket and advanced internal construction for excellent noise damping and weight saving.

Engine

Cylinder

Throttle body

Oil tank

Crankcase

Exhaust

02. State-of-the-art chassis

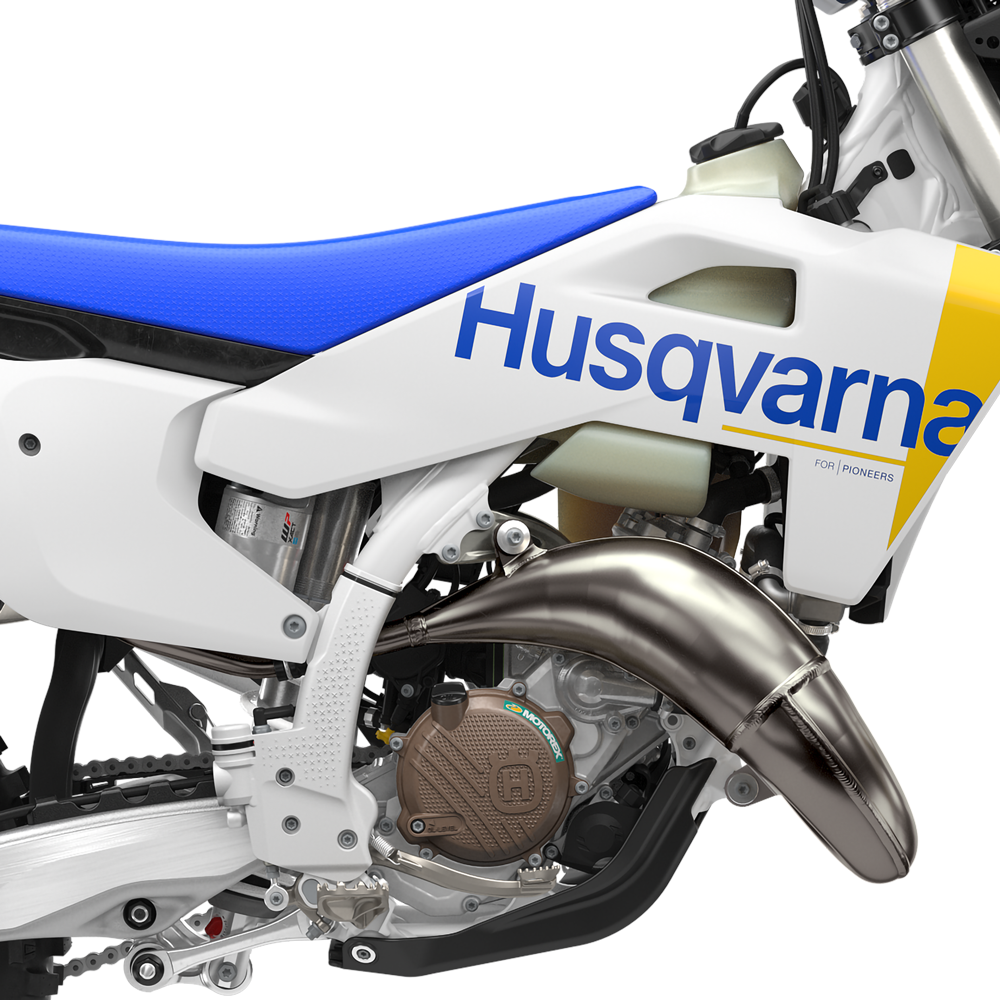

Frame

With an optimised distribution of material around the steering head and upper shock mount, the frame delivers confidence-inspiring handling and assured stability when entering corners. To complement the overall look of the machine, the chromium molybdenum chassis is finished with a premium metallic white powder coating. The finishing touches are the frame protectors, which not only protect the paintwork, but also provide riders with additional grip, even in the toughest conditions.

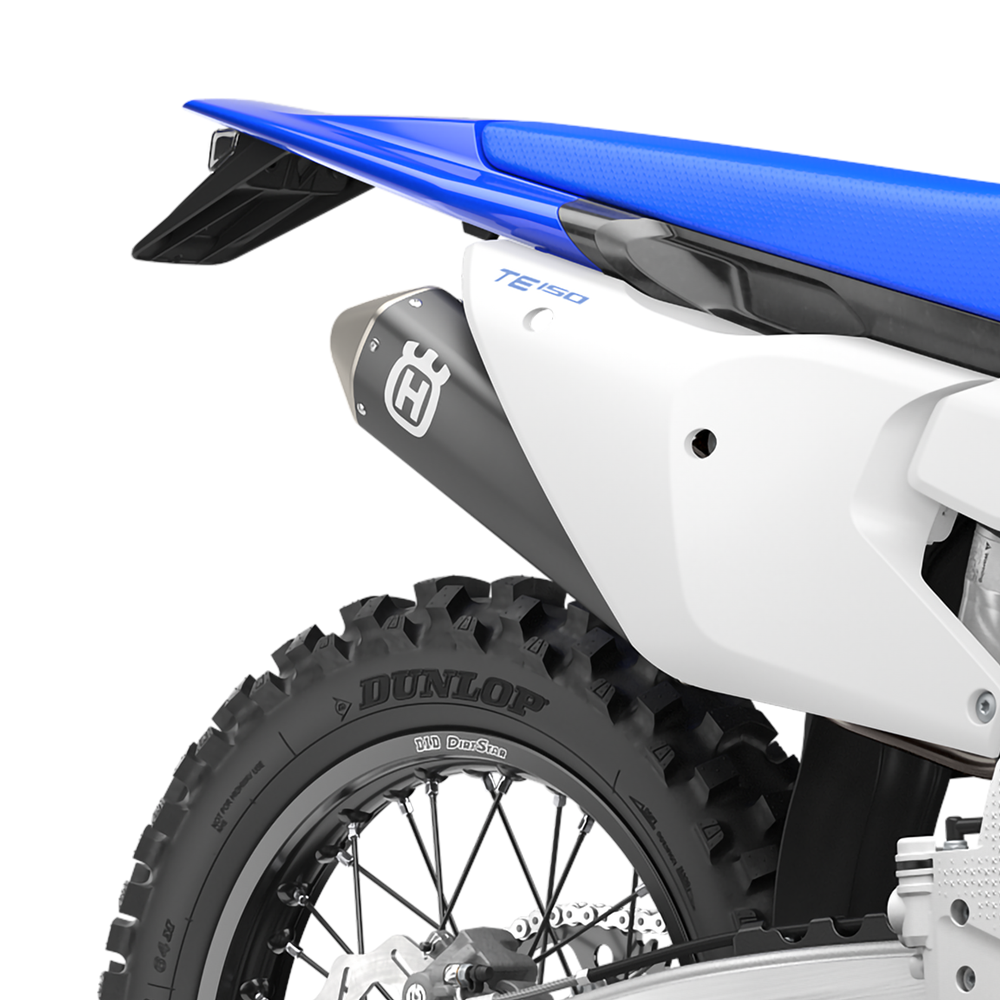

Hybrid subframe

Made from 60% polyamide and 40% aluminum, the subframe offers exceptional strength and durability at a low overall weight of just 3.9 lb (1.8 kg). The lower subframe spars and frame mounts are manufactured from cast aluminum for reliability, with the upper section made from injection-molded polyamide to enable specific flex characteristics.

Swingarm

The swingarm is manufactured using a die-cast production process and designed with a calculated level of rigidity. To further complement and optimize the flex characteristics of the chassis, a 22 mm rear wheel axle is utilized. A durable chain slider is neatly integrated into the swingarm, ensuring uninterrupted forward momentum through deeply rutted corners.

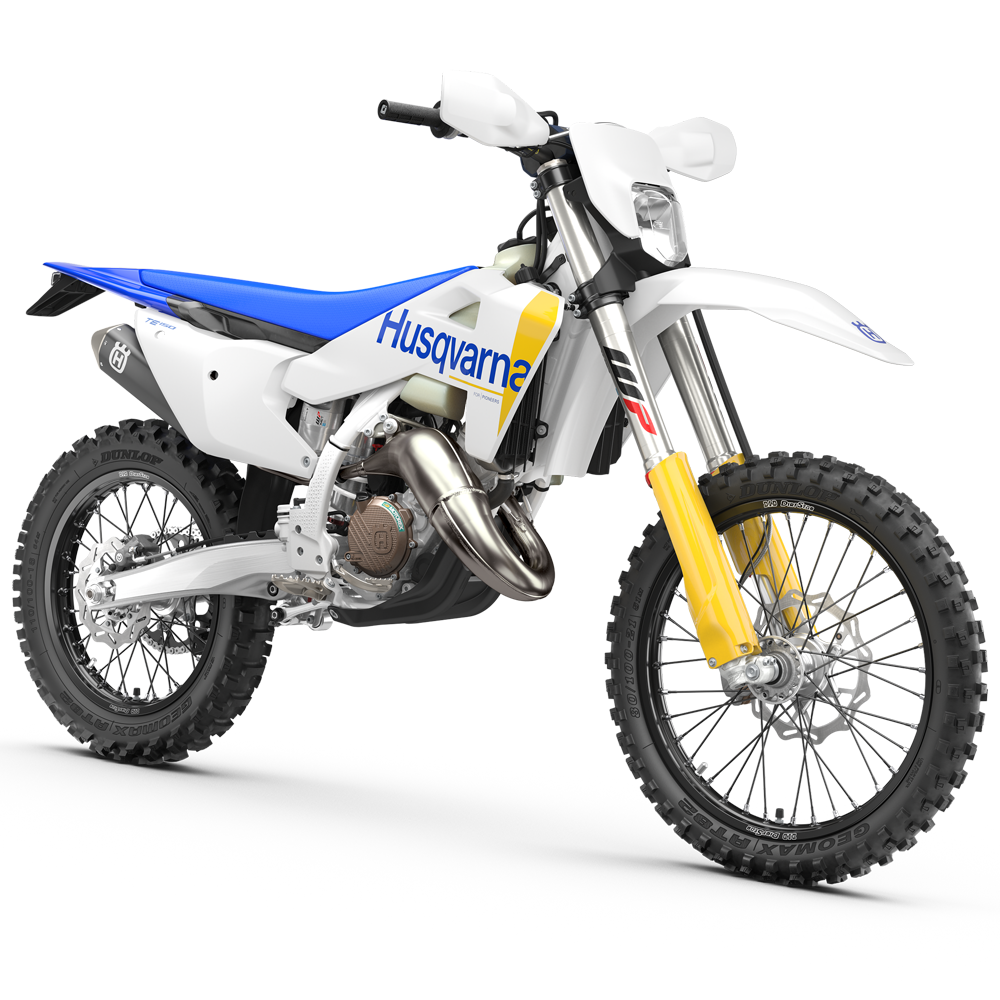

Bodywork

The ergonomic bodywork was designed to ensure that riders can perform at their best throughout every race. This was achieved through extensive testing, with the smooth contact points in the rider triangle allowing racers to grip the machine tightly with their legs, reducing fatigue. The radiator shrouds, featuring in-mold graphics, contribute to the progressive appearance of the machine, while a tall, wide seat offers unrestricted movement. A high-grip seat cover also helps keep riders securely in place under hard acceleration.

Fueltank

A 2.24-gallon (8.5-liter) fuel tank integrates neatly with the ergonomic bodywork and features a robust rubber cushion beneath it to hold the tank in place and protect the frame from wear. For durability, the external fuel line is specifically routed to make it less exposed and susceptible to damage.

Frame

Hybrid subframe

Swingarm

Bodywork

Fueltank

03. Innovative advantage

WP XACT front forks

Designed and developed for the rigours of enduro riding, the WP XACT Closed Cartridge spring forks offer consistent damping thanks to their innovative design. Inside each fork leg, lightweight springs with a polished finish enhance performance, while mid-valve pistons optimise oil flow to prevent foaming. A one-piece hydrostop, effective in the last 68 mm of travel, is highly advantageous when landing heavily as it helps to maintain forward momentum. Additionally, riders can alter the compression and rebound settings quickly and easily using the tool-free adjusters found at the top and bottom of each fork leg.

WP XACT rear shock

The WP XACT rear shock features a Computational Fluid Dynamics (CFD) optimised main piston, ensuring superior initial comfort and predictable performance in all conditions. To give riders the option of creating a personalised set-up, rebound, as well as the high and low-speed compression settings, can all be adjusted easily by hand.

Hydraulic brakes

Class-leading Brembo brake callipers, made from single pieces of aluminium for strength, are fitted front and rear to ensure high braking performance. Together with 260 mm front and 220 mm rear discs, both designed to prevent mud build-up, effective stopping power in all conditions is assured. The strong rear brake pedal is highly durable, and less susceptible to damage when riding through deep ruts.

Hydraulic clutch

The high-performance Brembo hydraulic clutch system guarantees even wear, near maintenance-free operation, and perfect action in every condition. With this hydraulic system, free play is constantly compensated so that the pressure point and clutch operation remain consistent in both cold and hot conditions, as well as over time. Countless hours of testing have proven the reliability of the high-quality hydraulic system manufactured by Brembo in Italy.

Wheels and tires

CNC-machined hubs, strong spokes, and high-strength, black-anodized alloy rims are used to assemble the wheels. They are fitted with versatile Dunlop AT82 tires. The front ensures precise cornering, while the rear provides excellent traction across varied terrain.

Cooling system

Manufactured from high-strength aluminum, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air through them in the most effective way. A large center tube through the frame reduces pressure at this point in the system for a consistent coolant flow, while an internal thermostat further enhances reliability. A new threaded radiator cap allows for easy inspection of the coolant level before each ride.

Triple clamps

The black-anodized, CNC-machined triple clamps offer premium quality as standard. They have a carefully calculated 22 mm offset and are expertly crafted using superior techniques and materials for the highest levels of quality and reliability. The handlebar clamp has a large contact surface with the ProTaper bars to help prevent twisting in the event of an impact and offers two mounting options for customizable ergonomics.

WP XACT front forks

WP XACT rear shock

Hydraulic brakes

Hydraulic clutch

Wheels and tires

Cooling system

Triple clamps

04. Technology advanced

LED headlight

The LED headlight provides a remarkably bright light output for excellent visibility at night and is particularly effective when riding through dense woodland. A clever mounting design sees the LED lighting unit fitted inside the headlight mask using a quick-release system that allows it to be replaced quickly and easily if damaged.

Map switch

By using the Map Select Switch, the engine characteristics can be tailored to modify the power delivery according to rider preference and conditions. It has two settings that can be engaged while riding - Map 1 (white) is the standard map for linear, progressive power designed for hard pack terrain while Map 2 (green) is more aggressive and suited to sand and heavier conditions.

Footrest

Using state-of-the-art computational fluid dynamics, the large footrests are designed for maximum control and to prevent mud from building up. Additionally, the mounting position brings them inwards, which makes them less susceptible to catching on the ground through deep ruts.

Electric starter

Taken from the motocross range, the combined start/stop switch is located on the right side of the handlebar for easy, thumb-operated use. Not only simplifying the starting and stopping of the engine, but the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.

Engine management system

The Vitesco Engine Management System (EMS) is designed to be small, light, and fast at processing data. It incorporates a Rollover Sensor (ROS) that cuts the ignition and shuts off the engine in the event of a severe crash for an additional layer of safety.

LED headlight

Map switch

Footrest

Electric starter

Engine management system

05. Built for the rider

RIDER ERGONOMICS

From the way the rider moves on the bike to how feedback is transmitted through the chassis, every touchpoint is developed to feel calm and controlled in high intensity riding. The ergonomic layout supports a neutral stance and stable contact when riding on the pegs, helping the rider stay composed as conditions change. Clean, functional bodywork reduces interference in wet and muddy situations, while a flat, grippy seat design encourages controlled movement from corner entry through acceleration. Paired with a lightweight, rigid subframe that enhances connection and feedback, the result is a riding experience focused on control, consistency, and confidence on every lap.
